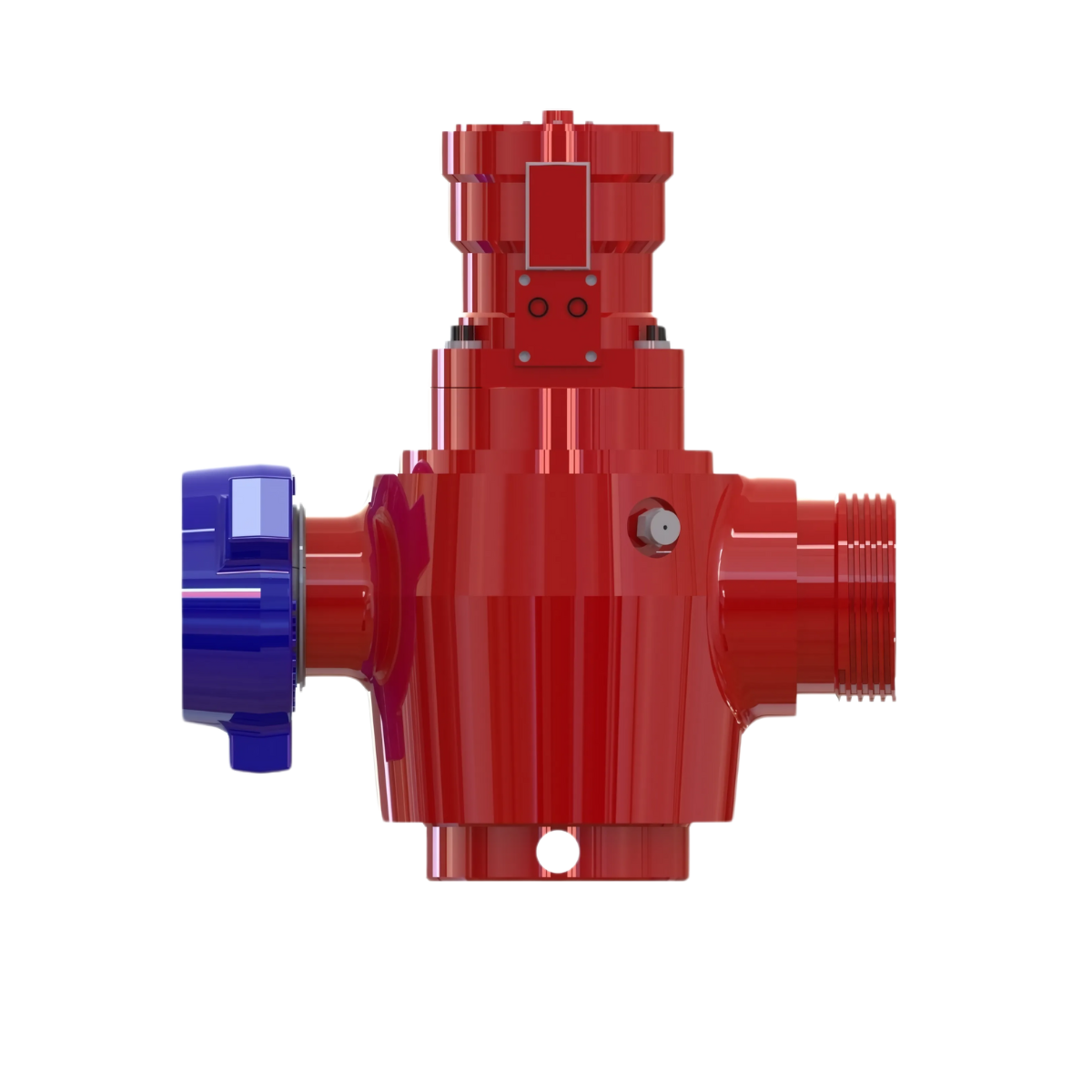

PLUG VALVE 3" * 3" 1502 HYDRAULIC ACTUATOR

PLUG VALVE 3" * 3" 1502 HYDRAULIC ACTUATOR

$12,155.00
$12,155.00
Sale Sold out
Shipping calculated at checkout.

PLUG VALVE 3" * 3" 1502 HYDRAULIC ACTUATOR

The PLUG VALVE 3" * 3" 1502 HYDRAULIC ACTUATED is a high-performance valve engineered for critical oilfield hydraulic applications requiring robust, reliable flow control under extreme pressure conditions. Designed to withstand pressures up to 15,000 psi, this valve is constructed from premium alloy steel forgings to ensure exceptional strength, durability, and corrosion resistance in harsh oil and gas environments.

Equipped with a hydraulic actuator, this plug valve enables precise remote operation, delivering fast and smooth valve positioning that enhances safety and operational efficiency. Its full bore design allows for unobstructed flow, minimizing pressure drop and enabling pigging operations, which is vital for pipeline maintenance.

The valve’s plug and inserts are abrasion and corrosion-resistant, ensuring long service life even when handling abrasive or corrosive fluids. The valve complies with API 6A and API Q1 standards, making it suitable for upstream and midstream oilfield applications. The hydraulic actuator is designed for seamless integration into automated manifold systems, supporting modern oilfield automation requirements.

Key Features

  • Hydraulic Actuation: Provides rapid and precise valve control with adjustable stroke and position feedback.

  • High Pressure Capability: Rated up to 15,000 psi (1034 bar) for demanding oilfield hydraulic systems.

  • Material Excellence: Alloy steel body and plug forged for maximum strength and corrosion resistance.

  • Full Bore Design: Ensures minimal pressure loss and supports pigging operations.

  • Abrasion & Corrosion Resistant Plug: Specially designed inserts to extend valve life in harsh fluids.

  • Top Entry Design: Simplifies maintenance and repair without removing the valve from the pipeline.

  • API Compliance: Manufactured in accordance with API 6A and API Q1 standards.

  • Versatile Connection: Union ends for easy installation and removal.

  • Optional Gearbox: Available with gear-operated handle for manual override.

Specifications & Technical Details

Parameter Details
Valve Type Plug Valve
Size 3" (Inlet) x 3" (Outlet)
Model Number 1502
Actuation Hydraulic Actuator
Maximum Operating Pressure Up to 15,000 psi (1034 bar)
Body Material Alloy Steel Forging
Plug Material Abrasion and Corrosion Resistant Inserts
Seal Type Metal-to-metal sealing
Connection Type Union Ends
Temperature Range Suitable for high temperature oilfield service
Compliance Standards API 6A, API Q1
Maintenance Top entry design for easy servicing
Optional Accessories Gearbox manual override, position feedback


Applications

The PLUG VALVE 3" * 3" 1502 HYDRAULIC ACTUATED is ideal for:

  • High-pressure oilfield hydraulic control systems

  • Wellhead and manifold valve automation

  • Pipeline isolation and flow control in upstream and midstream sectors

  • Abrasive and corrosive fluid handling in oil and gas extraction

  • Automated manifold systems requiring reliable remote valve actuation

  • Maintenance-friendly installations with top-entry design

Supplied by Blaze Sales and Service

Blaze Sales and Service proudly offers this premium hydraulic actuated plug valve, backed by expert technical support and timely delivery. For pricing, customization, or technical inquiries, please contact:

Call: +1 405 666 5011
Email: seo@blazess.com
