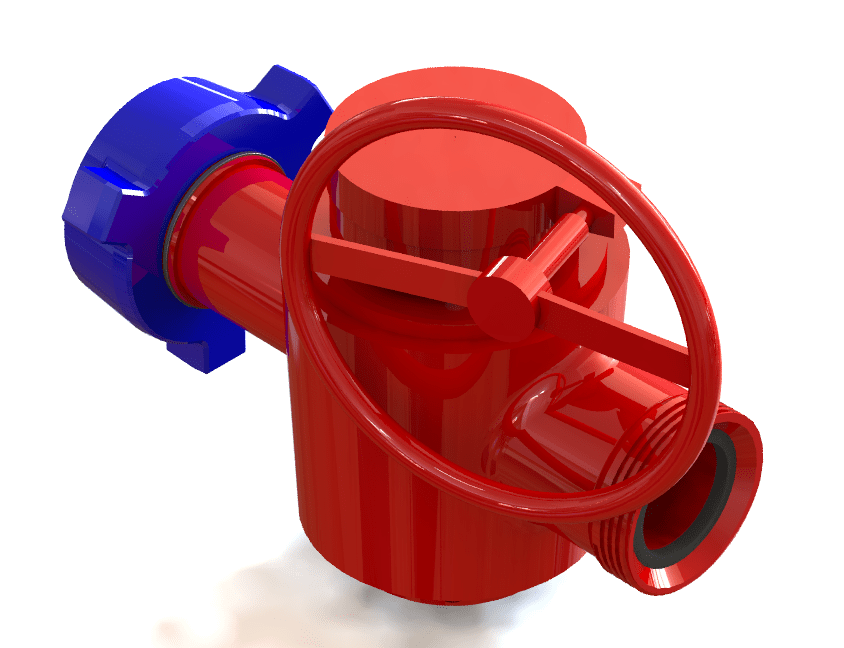

PLUG VALVE 3" * 3" 1502 GEAR OPERATED
In the challenging world of high-pressure oilfield operations, the demand for robust and dependable flow control equipment is continuous. The Blaze Sales and Service 3" x 3" 1502 Gear Operated Plug Valve is meticulously engineered to excel in these demanding environments, delivering exceptional performance and unwavering reliability for standard service applications. This valve is an indispensable solution for managing high-pressure fluids such as oil, gas, drilling muds, cement slurries, and abrasive fracturing fluids, ensuring seamless operations.
Crafted from premium forged alloy steel, this valve is built to withstand severe pressures and abrasive mediums, promising an extended operational life and minimal maintenance requirements. The integrated gear operating mechanism provides a significant mechanical advantage, enabling smooth, precise, and effortless manual actuation even under full working pressure. This design ensures that operators can achieve positive, leak-free shut-off with confidence and ease, enhancing both operational efficiency and safety in the field.
Equipped with field-proven 1502 union ends, this plug valve guarantees secure, high-pressure connections, maintaining the integrity of your vital flow lines. When your operations call for powerful, direct, and reliable manual flow control in standard oilfield conditions, the Blaze Sales and Service 3" x 3" 1502 Gear Operated Plug Valve stands as a testament to superior engineering and steadfast performance.
Features:
- High-Pressure Rating: Designed for 1502 service, ensuring robust performance with a 15,000 PSI Cold Working Pressure (CWP) in extreme pressure applications.
- Gear Operated Mechanism: Provides superior mechanical advantage for smooth, easy, and precise manual actuation, reducing operator effort even under high line pressure.
- Rugged Construction: Manufactured from premium forged alloy steel for exceptional strength, wear resistance, and extended durability in harsh oilfield conditions.
- Positive Shut-off: Delivers reliable, bubble-tight sealing and leak-free performance for critical flow isolation, preventing costly fluid loss.
- Full Bore Design: Ensures unrestricted flow, minimizing turbulence and pressure drop for efficient handling of various drilling and production fluids, including those with particulates.
- Versatile Media Handling: Capable of safely handling oil, gas, drilling mud, cement slurries, fracturing fluids, and other abrasive or corrosive mediums typical in standard oilfield service.
- Ease of Maintenance: Designed for straightforward field servicing, contributing to reduced downtime and operational costs.
- Field-Proven Reliability: Engineered and tested to meet stringent industry standards for consistent and dependable performance in demanding conditions.
Specifications and Technical Details:
| Parameter | Detail |
|---|---|
| Nominal Size | 3" x 3" |
| End Connections | 1502 Union Ends (API 6A compatible) |
| Working Pressure (CWP) | 15,000 PSI (P1502) - This is the Cold Working Pressure, consistent with the 1502 design class. |
| Test Pressure | 22,500 PSI (Non-Shock Hydrostatic) |
| Actuation Type | Gear Operated (Manual via Handwheel or Wrench) |
| Body Material | Forged Alloy Steel (e.g., AISI 4130, 4140) |
| Plug Material | Heat-treated alloy steel, surface hardened for superior wear and corrosion resistance |
| Sealing Material | Resilient elastomeric seals (e.g., Nitrile, HNBR, FKM depending on temperature range) |
| Working Medium | Oil, Gas, Drilling Mud, Cement Slurry, Fracturing Fluids, Water, and other abrasive fluids |
| Sour Gas Service | No (Designed for Standard Oilfield Service; for Sour Service, see NACE MR0175 compliant valves) |
| Bore Diameter | 3 inches (Full Port) |
| Manufacturing Standards | Meets or exceeds API 6A requirements for wellhead and christmas tree equipment. |
Application:
The 3" x 3" 1502 Gear Operated Plug Valve is an essential component in various high-pressure oilfield applications where robust, reliable manual control is required for standard service conditions:
- Drilling Operations: Ideal for standpipe manifolds, mud manifolds, kill lines, and choke manifolds.
- Well Servicing: Utilized in cementing operations, fracturing units, and well testing manifolds.
- Production Manifolds: Suitable for high-pressure flow lines and production infrastructure.
- Mud Systems: Effective for controlling flow in mud pits and circulation systems.
- General Oilfield Flow Lines: Applicable in any high-pressure flow line requiring dependable positive shut-off in standard service.
Supplied by Blaze Sales and Service – Contact us today for unparalleled expertise and reliable oilfield solutions.
