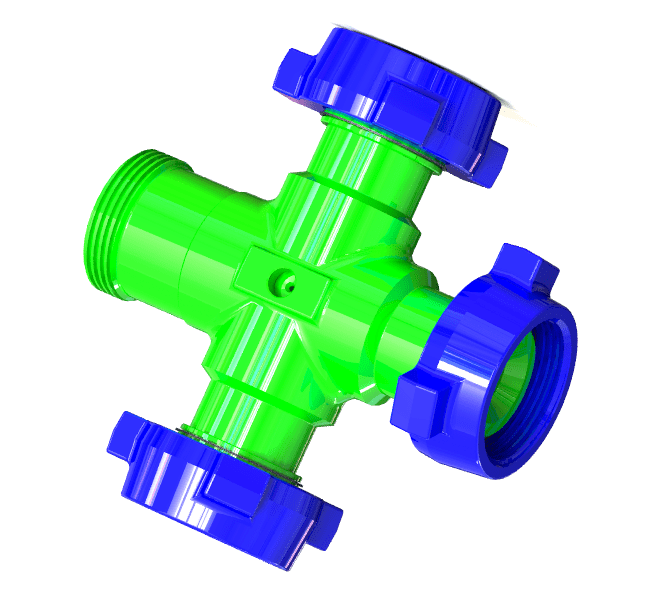

Cross 3" 1502 M(wing) X M(wing) X M(wing) X F(thread) with 9/16" auto clave sour service

CROSS 3" 1502 M(WING) X M(WING) X M(WING) X F(THREAD) WITH 9/16" AUTO CLAVE SOUR SERVICE:

This robust 3" CROSS is specifically engineered for demanding high-pressure sour service applications in the oilfield, combining the convenience of wing nut connections with a high-integrity Auto Clave port. Built with corrosion-resistant materials, it ensures safe and reliable operation in critical sour gas environments.

Features:

• Sour Service Compatibility: Constructed with materials meticulously selected for their superior resistance to sulfide stress cracking (SSC) and other corrosive elements prevalent in sour gas environments. Complies with industry standards for sour service.
• High-Pressure Rating (1502 Class): Designed and manufactured to meet the rigorous pressure requirements of 1502 class service, ensuring safe operation in high-pressure systems.
• Efficient Male Wing Nut Connections: Features three male wing nut (M) connections, providing quick and secure make-up and break-out, essential for efficient operations in the field.
• High-Integrity Female Thread with Auto Clave Connection: Includes one female threaded (F) port equipped with a 9/16" Auto Clave connection, delivering a reliable metal-to-metal seal for exceptional leak prevention in high-pressure scenarios.
• Heavy-Duty Construction: Manufactured to stringent quality standards to ensure long-lasting durability and dependable performance in harsh oilfield conditions.

Specifications and Technical Details:

• Size: 3"
• Connection Type: 3 x Male Wing Nut (M), 1 x Female Thread (F) with 9/16" Auto Clave
• Pressure Rating: 1502 Class
• Service: Sour Service
• Material: Materials selected for NACE MR0175 compliance (specific material grade available upon request).
• End Connection Standard (Threaded): Threaded connection conforms to relevant industry standards (specific standard available upon request).
• Auto Clave Connection Size: 9/16"

Application:

This specialized 3" CROSS is ideally suited for high-pressure sour service applications requiring a combination of rapid connection capabilities and a high-integrity, leak-proof Auto Clave connection. Typical applications include:

• Sour gas well testing manifolds
• High-pressure sampling and injection systems in sour environments
• Critical connections in sour gas production trees and well control equipment
• Applications demanding both quick connection/disconnection and exceptional sealing integrity in corrosive environments.
