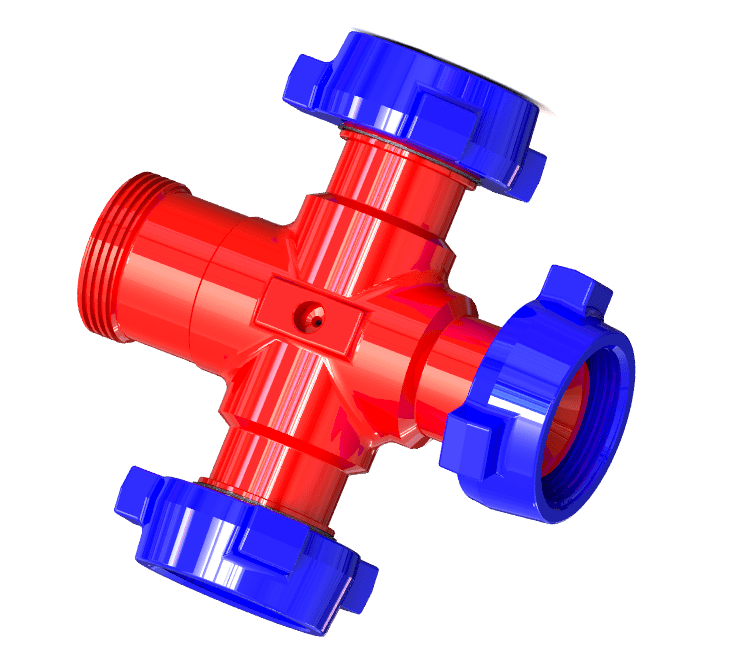

Cross 3" 1502 M(Wing) X M(Wing) X M(Wing) X F(Thread) WITH 9/16" Auto Clave

CROSS 3" 1502 M(WING) X M(WING) X M(WING) X F(THREAD) WITH 9/16" AUTO CLAVE:

This heavy-duty CROSS is engineered for high-pressure oilfield applications, featuring a combination of quick-connect wing nut and high-integrity threaded connections. Designed for robust performance in demanding environments.

Features:

• High-Pressure Rating (1502 Class): Built to meet the stringent pressure requirements of 1502 class service.
• Multiple Male Wing Nut Connections: Features three male wing nut (M) connections, allowing for rapid and secure make-up and break-out, ideal for frequent connections and disconnections in the field.
• High-Integrity Female Thread with Auto Clave Connection: Includes one female threaded (F) port with a 9/16" Auto Clave connection, providing a metal-to-metal seal for exceptional leak resistance in high-pressure applications.
• Durable Construction: Manufactured to exacting industry standards for long-lasting durability and reliable performance in challenging oilfield conditions.

Specifications and Technical Details:

• Size: 3"
• Connection Type: 3 x Male Wing Nut (M), 1 x Female Thread (F) with 9/16" Auto Clave
• Pressure Rating: 1502 Class
• Service: Standard Service (suitable for non-sour environments)
• Material: Constructed from high-strength materials suitable for the specified pressure rating (specific material grade available upon request).
• End Connection Standard (Threaded): Threaded connection conforms to industry standards (specific standard available upon request).
• Auto Clave Connection Size: 9/16"

Application:

This versatile CROSS is well-suited for high-pressure oilfield applications requiring a combination of quick-connect wing nut connections and a high-integrity Auto Clave threaded connection. Typical applications include:

• Well testing manifolds
• High-pressure control lines
• Chemical injection points requiring secure, leak-proof connections
• Specialized connections in production systems and well control equipment
• Other critical service applications demanding both rapid connection and exceptional sealing integrity.

For inquiries or to place an order, please contact Blaze Sales and Service at +1 405 666 5011 or email at seo@blazess.com.
