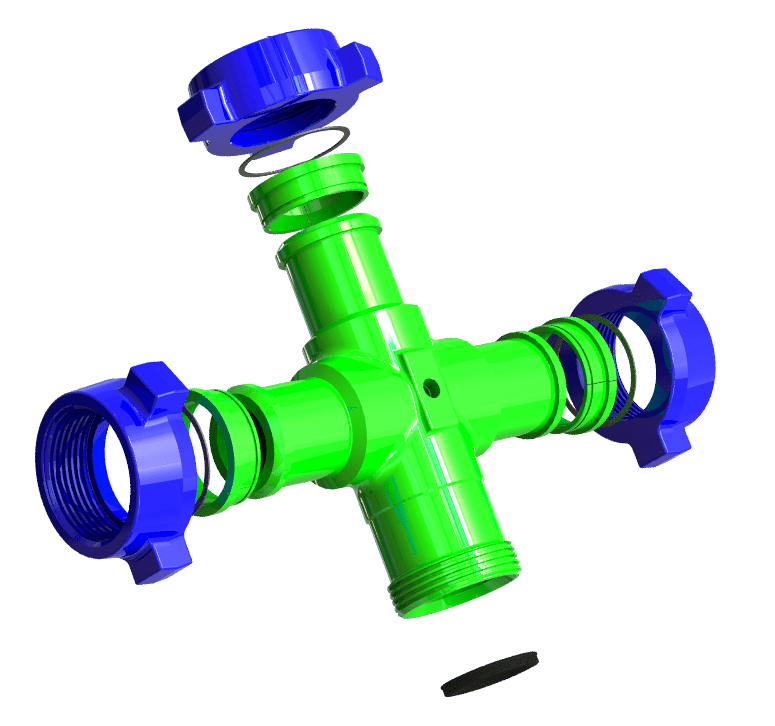

Cross ,3" 1502 M (wing ) x M (wing ) x M (wing ) x F (thread) 1 /2" NPT TAP, SOUR , 10000

Cross ,3" 1502 M (wing ) x M (wing ) x M (wing ) x F (thread) 1 /2" NPT TAP, SOUR ,10000

For critical high-pressure oilfield operations in sour gas environments requiring both the capacity for increased flow and integrated monitoring or auxiliary access, our 3" 1502 Cross provides a robust and reliable solution. Featuring a configuration of three Male Wing (M) connections, one Female Threaded (F) connection, and a conveniently integrated ½" NPT tap, this cross is engineered specifically for "Sour Service" applications. Rated at a dependable 10000 PSI, it delivers essential connectivity and enhanced functionality in corrosive high-pressure conditions at a larger size.

Crafted from high-strength alloy materials fully compliant with stringent sour service standards (such as NACE MR0175) and precision-machined to the exacting specifications of the 1502 union, this cross ensures safe, leak-free connections capable of withstanding both significant pressure and the corrosive effects of H₂S. The inclusion of the ½" NPT tap provides a secure and reliable port for localized pressure verification, sampling, or the connection of auxiliary low-volume lines, improving operational control and safety in demanding sour service environments.

3" 1502 Cross fitting (3xM Wing, 1xF Thread) with integrated ½" NPT Tap, rated for 10000 PSI Sour Service. Made from NACE compliant materials for reliable high-pressure, higher-flow performance with monitoring access in H₂S environments.

Features:

• Sour Service Compliance: Manufactured with materials and processes that fully comply with industry standards for sour service environments (NACE MR0175), providing crucial resistance to sulfide stress cracking and corrosion from H₂S.
• 10000 PSI Pressure Rating: Engineered for safe and reliable performance at maximum working pressures up to 10000 PSI, suitable for demanding high-pressure applications in sour fields.
• Higher Flow 3" Size: Provides increased flow capacity compared to smaller fittings, essential for applications requiring higher volumes at high pressure in sour service.
• Versatile MMMF 1502 Configuration: Features three 1502 Male Wing ends and one 1502 Female Threaded end, offering essential flexibility in designing manifolds and piping systems with this specific connectivity in sour service, facilitating efficient flow paths.
• Integrated ½" NPT Tap: Includes a dedicated, precisely machined ½" NPT female tap, providing a secure and accessible point for installing pressure gauges, sampling valves, or other NPT-compatible instrumentation for localized monitoring or auxiliary functions, enhancing control in corrosive environments.
• High-Strength, Corrosion-Resistant Construction: Built from high-strength alloy materials specifically selected and treated for enhanced durability and superior resistance to the corrosive agents present in sour gas environments, ensuring longevity and reliability.
• Reliable Sealing for Critical Safety: Designed with precision to ensure secure, leak-free connections across all ports, which is paramount for safety and environmental protection when handling fluids containing H₂S under pressure.
• Precision Machining: Guarantees accurate dimensions and mating surfaces, facilitating reliable assembly and consistent performance in the field.
• Trusted 1502 Union Compatibility: Designed for seamless integration and secure mating with other 1502 hammer union components commonly used in sour service applications, ensuring interchangeability and ease of use.

Specifications and Technical Details:

• Product Type: Cross Fitting with NPT Tap
• Size: 3 inch (Nominal)
• Pressure Rating: 10000 PSI (68.9 MPa) Working Pressure
• Connections:

  • Three (3) x 1502 Male Wing
  • One (1) x 1502 Female Threaded
  • One (1) x ½ inch NPT Female Tap
• Service Class: Sour Service (SOUR)
• Material: High-strength alloy steel specifically manufactured and tested for sour service applications, fully compliant with standards such as NACE MR0175 (ISO 15156). (Material Test Reports available upon request)
• NPT Tap Details: The integrated ½" NPT tap is a precisely engineered feature providing a robust, leak-tight port on the fitting. It is rated to the fitting's full working pressure, allowing for direct and accurate measurement of pressure, convenient extraction of fluid samples, or the connection of low-volume auxiliary lines for injection or control at a vital point in the high-pressure sour service circuit, enhancing operational insight and flexibility without compromising the integrity of the main flow path.
• Compliance: Manufactured under strict quality control processes and designed to meet or exceed relevant industry standards for high-pressure and sour service oilfield equipment, ensuring safety and reliability in H₂S environments.
• End Connections: All 1502 and NPT connections are precision manufactured to conform to their respective industry standards, guaranteeing proper and secure mating with compatible components in sour service applications.

Application:

This 3" 1502 Cross (M x M x M x F) with ½" NPT Tap, 10000 PSI Sour Service fitting is essential for high-pressure applications in oil and gas environments containing H₂S that require versatile routing, higher flow rates, and localized monitoring or auxiliary access. Typical applications include:

• Sour Gas Production and Gathering Lines: Used in piping and manifold systems handling larger volumes of fluids with H₂S, where monitoring points are needed.
• Wellhead and Christmas Tree Assemblies in Sour Fields: Providing reliable and corrosion-resistant junctions with access for pressure gauges or sampling in sour service well control systems, particularly those requiring 3" connections.
• High-Pressure Stimulation Manifolds in Sour Environments: Essential for managing high-pressure fluid delivery during fracturing and other stimulation treatments in environments containing H₂S, where localized monitoring or injection via the NPT tap is required at higher flow rates.
• Cementing and Acidizing in Sour Wells: Used in high-pressure fluid delivery systems during well service operations in corrosive sour environments, offering a port for monitoring treatment parameters at a 3" size.
• Any 10000 PSI System in Sour Service: Applicable wherever a 3" cross with this specific MMMF 1502 configuration and an integrated NPT tap is required to safely and efficiently manage high-pressure, potentially higher-volume fluids containing H₂S with enhanced monitoring or auxiliary capabilities.

Ensure the safety, integrity, and operational efficiency of your sour service applications with integrated monitoring and increased flow capacity using our dependable 3" 1502 Cross (M x M x M x F) with ½" NPT Tap, 10000 PSI Sour Service fitting.

Supplied by Blaze Sales and service

Call +1 405 666 5011 or email at seo@blazess.com
