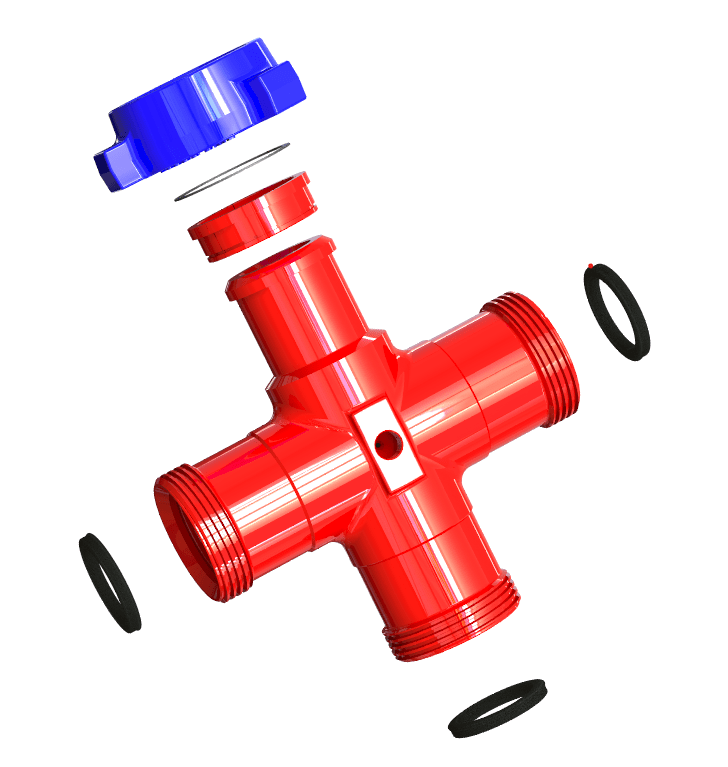

Cross, 3", 1502 F (thread) x F (thread) x F (thread) x M (wing) Standard, 15000 PSI 9/16_ AUTOCLAVE

Cross, 3", 1502 F (thread) x F (thread) x F (thread) x M (wing) Standard, 15000 PSI 9/16_ AUTOCLAVE

For complex high-pressure oilfield systems requiring robust flow management at a 3" size and the integration of a highly reliable auxiliary port, our 3" 1502 Cross with a 9/16" Autoclave connection provides the ideal solution. This precision-engineered fitting combines the versatility of three Female Threaded (F) 1502 connections and one Male Wing (M) 1502 connection with the specialized integrity of a 9/16" Autoclave high-pressure connection. Rated for an unyielding 15000 PSI for Standard Service, this cross is built to perform flawlessly in the most demanding high-pressure applications.

Manufactured from high-strength alloy and meticulously machined to the exacting standards of both the 1502 union and Autoclave connection technologies, this fitting ensures unwavering reliability and leak-free performance under extreme operating conditions. The integrated 9/16" Autoclave port offers a superior connection point for critical instrumentation, sampling, or auxiliary lines where maintaining the highest level of sealing integrity under pressure is paramount, exceeding the capabilities of standard threaded connections.

3" 1502 Cross (3xF Thread, 1xM Wing) with integrated 9/16" Autoclave connection, rated for 15000 PSI Standard Service. A high-strength alloy fitting for versatile high-pressure routing and secure auxiliary line access in demanding oilfield environments.

Features:

• Heavy-Duty 15000 PSI Rating: Engineered for safe and dependable service at a maximum working pressure of 15000 PSI, suitable for critical high-pressure oilfield operations.
• Flexible Connection Configuration: Features three 1502 Female Threaded ends and one 1502 Male Wing end, providing versatile options for integrating into complex high-pressure manifolds.
• Integrated 9/16" Autoclave Connection: Includes a specialized, high-integrity 9/16" Autoclave connection, offering a robust and reliable port for auxiliary high-pressure lines or instrumentation requiring superior sealing.
• Premium High-Strength Alloy Construction: Built from a select high-strength alloy, ensuring exceptional durability, resistance to wear, and the structural integrity needed for prolonged performance in harsh oilfield conditions.
• Standard Service Ready: Designed for reliable performance when handling a wide range of standard oilfield fluids and operating parameters.
• Precision Machining: Expertly crafted to precise tolerances, guaranteeing optimal fit-up, ease of assembly, and dependable, leak-free performance across all connection points.
• Industry Standard Compatibility: Both the 1502 hammer union ends and the 9/16" Autoclave connection conform to their respective industry standards, ensuring compatibility and reliable mating with other components.

Specifications and Technical Details:

• Product Type: Cross Fitting with Autoclave Connection
• Size: 3 inch (Nominal)
• Pressure Rating: 15000 PSI (103.4 MPa) Working Pressure
• Connections:

  • Three (3) x 1502 Female Threaded
  • One (1) x 1502 Male Wing
  • One (1) x 9/16 inch Autoclave
• Service Class: Standard Service (STD)
• Material: High-strength alloy (Material Test Reports available upon request)
• 9/16" Autoclave Connection Details: The integrated 9/16" Autoclave connection is a precisely engineered, high-pressure, cone-and-thread style port on the fitting. This design provides superior sealing integrity and mechanical strength compared to conventional threaded connections like NPT, making it the preferred choice for critical instrumentation lines, sampling ports, or chemical injection points in extremely high-pressure environments up to the fitting's 15000 PSI rating where a more robust and reliable auxiliary connection is required.
• Compliance: Manufactured under strict quality control processes and designed to meet or exceed relevant industry standards for high-pressure oilfield equipment.
• End Connections: All 1502 and Autoclave connections are precision manufactured to conform to their respective industry standards, guaranteeing proper and secure mating with compatible components.

Application:

This 3" 1502 Cross (F x F x F x M) with 9/16" Autoclave Connection, 15000 PSI Standard Service, is a vital component for high-pressure oilfield applications requiring 3" flow paths and a high-integrity auxiliary connection point. Key applications include:

• High-Pressure Manifolds: Used to create versatile branching points in high-pressure lines, with a secure port for monitoring or auxiliary functions.
• Well Stimulation and Cementing: Provides essential connectivity and auxiliary access in high-pressure fluid delivery systems.
• Well Testing Spreads: Facilitates complex flow routing and offers a reliable port for high-pressure monitoring or sampling.
• Critical Auxiliary Lines: Ideal for applications requiring a dedicated, high-integrity connection for instrumentation, chemical injection, or other auxiliary functions under extreme pressure.
• Any 15000 PSI System: Applicable wherever a 3" cross with this specific combination of 1502 ends and a highly reliable 9/16" Autoclave auxiliary connection is necessary for operational safety and performance.

Elevate the performance and integrity of your high-pressure oilfield systems with this specialized 3" 1502 Cross with 9/16" Autoclave Connection.

Supplied by Blaze Sales and service

Call +1 405 666 5011 or email at seo@blazess.com
