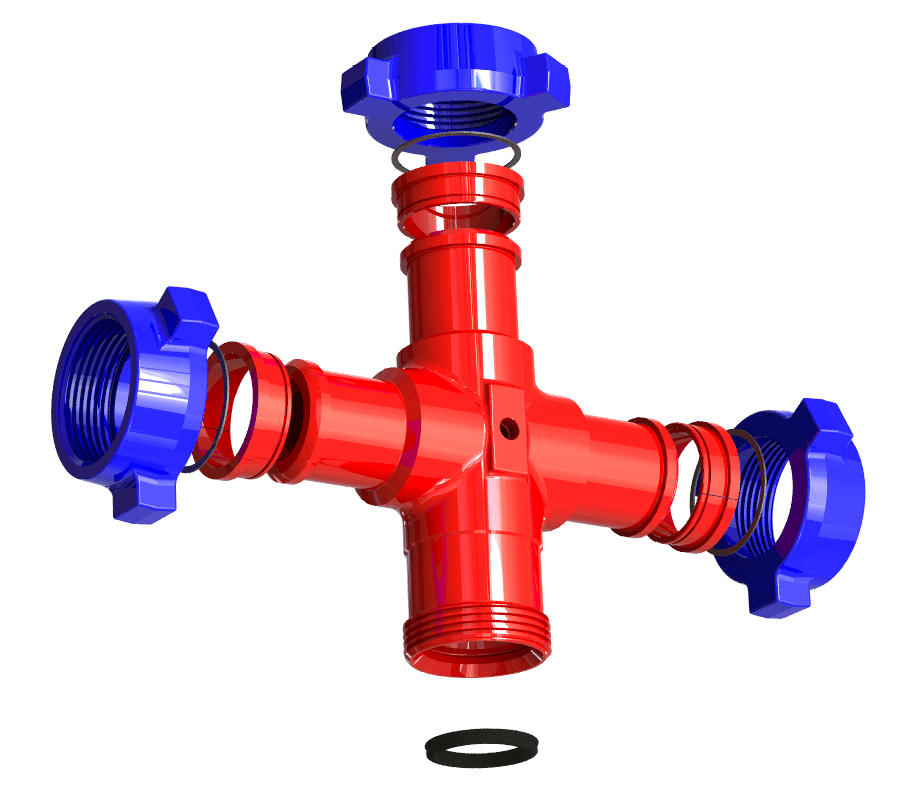

Cross ,2" 1502 M (wing ) x M (wing ) x M (wing ) x F (thread) 1 /2" NPT TAP, Standard 15000 PSI

Cross ,2" 1502 M (wing ) x M (wing ) x M (wing ) x F (thread) 1 /2" NPT TAP, Standard 15000 PSI

For the most critical high-pressure oilfield operations demanding both robust connectivity and convenient access for monitoring or auxiliary functions, our 2" 1502 Cross offers an exceptional solution. Featuring a configuration of three Male Wing (M) connections, one Female Threaded (F) connection, and an integrated ½" NPT tap, this cross is engineered for Standard Service and rated at a formidable 15000 PSI. It provides essential connectivity and enhanced operational flexibility in the most demanding high-pressure applications.

Crafted from high-strength alloy and precision-machined to the exacting standards of the 1502 union, this cross ensures secure, leak-free connections capable of withstanding immense operational pressures up to 15000 PSI. The addition of the ½" NPT tap provides a convenient and reliable port for localized pressure verification, sampling, or the connection of auxiliary low-volume lines, improving operational control and data acquisition within your extreme high-pressure system.

2" 1502 Cross fitting (3xM Wing, 1xF Thread) with integrated ½" NPT Tap, rated for 15000 PSI Standard Service. A high-strength alloy component for versatile, extreme-pressure routing with monitoring access in standard oilfield applications.

Features:

• Extreme 15000 PSI Pressure Rating: Engineered for safe and reliable performance at a maximum working pressure of 15000 PSI, suitable for the most demanding high-pressure applications.
• Versatile MMMF 1502 Configuration: Features three 1502 Male Wing ends and one 1502 Female Threaded end, offering essential flexibility in designing complex high-pressure manifold and piping systems.
• Integrated ½" NPT Tap: Includes a dedicated, precisely machined ½" NPT female tap, providing a secure and accessible point for installing pressure gauges, sampling valves, or other NPT-compatible instrumentation for localized monitoring or auxiliary functions.
• High-Strength Alloy Construction: Built from premium high-strength alloy, ensuring exceptional durability, resistance to wear, and the structural integrity required for prolonged service in demanding high-pressure oilfield environments.
• Standard Service Ready: Designed for dependable performance when handling a wide range of standard oilfield fluids and operating conditions.
• Reliable Sealing: Designed with precision to ensure secure, leak-free connections across all ports, critical for maintaining system integrity under extreme pressure.
• Precision Machining: Guarantees accurate dimensions and mating surfaces for reliable assembly and consistent performance in the field.
• Trusted 1502 Union Compatibility: Designed for seamless integration and secure mating with other 1502 hammer union components commonly used in 15000 PSI high-pressure standard service applications.

Specifications and Technical Details:

• Product Type: Cross Fitting with NPT Tap
• Size: 2 inch (Nominal)
• Pressure Rating: 15000 PSI (103.4 MPa) Working Pressure
• Connections:

  • Three (3) x 1502 Male Wing
  • One (1) x 1502 Female Threaded
  • One (1) x ½ inch NPT  Tap
• Service Class: Standard Service (STD)
• Material: High-strength alloy (Material Test Reports available upon request)
• NPT Tap Details: The integrated ½" NPT tap is a precisely engineered feature providing a robust, leak-tight port on the fitting. It is rated to the fitting's full working pressure, allowing for direct and accurate measurement of pressure, convenient extraction of fluid samples, or the connection of low-volume auxiliary lines for injection or control at a vital point in the high-pressure circuit, enhancing operational insight and flexibility without compromising the integrity of the main flow path.
• Compliance: Manufactured under strict quality control processes and designed to meet or exceed relevant industry standards for high-pressure oilfield equipment.
• End Connections: All 1502 and NPT connections are precision manufactured to conform to their respective industry standards, guaranteeing proper and secure mating with compatible components in standard service applications.

Application:

This 2" 1502 Cross (Mx M x M x F) with ½" NPT Tap, 15000 PSI Standard Service fitting is essential for a variety of extreme high-pressure applications in standard oilfield environments that require versatile routing and localized monitoring or auxiliary access. Typical applications include:

• High-Pressure Frac and Cementing Manifolds: Used in building complex manifold systems for 15000 PSI pumping operations, where monitoring points are needed.
• Well Testing Spreads: Facilitates flexible and reliable flow routing in 15000 PSI well testing operations with integrated monitoring capability.
• Fluid Delivery Systems: Provides essential junction points in 15000 PSI lines for injecting or transporting fluids with a port for monitoring parameters.
• Any 15000 PSI System in Standard Service: Applicable wherever a 2" cross with this specific MMMF 1502 configuration and an integrated NPT tap is required to safely and efficiently manage extreme high-pressure fluids in standard oilfield conditions with enhanced monitoring or auxiliary capabilities.

Ensure the safety, integrity, and operational efficiency of your extreme high-pressure standard service applications with integrated monitoring using our dependable 2" 1502 Cross (M x M x M x F) with ½" NPT Tap, 15000 PSI Standard Service fitting.

Supplied by Blaze Sales and service

Call +1 405 666 5011 or email at seo@blazess.com
