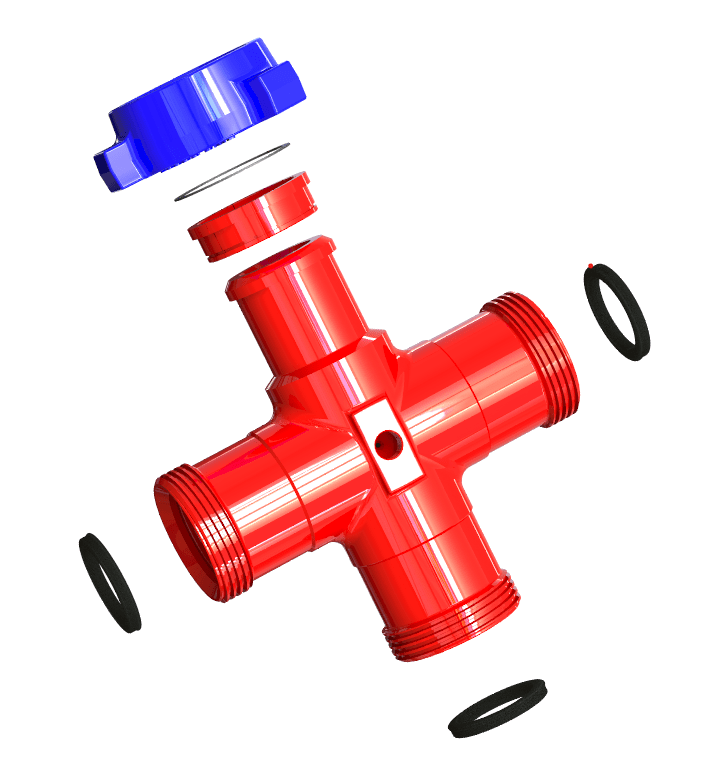

Cross, 2", 1502 F (thread) x F (thread) x F (thread) x M (wing) Standard, 15000 PSI 9/16" AUTOCLAVE

Cross, 2", 1502 F (thread) x F (thread) x F (thread) x M (wing) Standard, 15000 PSI 9/16" AUTOCLAVE

For critical high-pressure oilfield applications demanding both versatile flow management and a highly secure auxiliary connection point, our 2" 1502 Cross stands ready. This specialized fitting features a robust arrangement of three Female Threaded (F) 1502 connections, one Male Wing (M) 1502 connection, and a precisely integrated 9/16" Autoclave high-pressure connection. Engineered to handle a formidable 15000 PSI for Standard Service, this cross is the ideal component for intricate high-pressure systems where reliability and precise auxiliary access are paramount.

Crafted from high-strength alloy and meticulously machined to the stringent specifications of both the 1502 union and Autoclave connection standards, this cross ensures unwavering integrity under extreme operating conditions. The inclusion of the 9/16" Autoclave port provides a superior connection for instrumentation or auxiliary lines where the highest level of sealing and pressure containment is required, surpassing the capabilities of conventional NPT connections in critical high-pressure environments.

High-pressure 2" 1502 Cross (3xF Thread, 1xM Wing) with integrated 9/16" Autoclave connection, rated for 15000 PSI Standard Service. A durable high-strength alloy fitting offering versatile connectivity and a secure, high-integrity port for auxiliary lines in demanding oilfield applications.

Features:

• Uncompromised 15000 PSI Rating: Engineered for safe and reliable performance at a maximum working pressure of 15000 PSI, suitable for the most challenging high-pressure oilfield scenarios.
• Adaptable Multi-Port Design: Features three 1502 Female Threaded ends and one 1502 Male Wing end, enabling flexible integration into complex high-pressure manifold configurations.
• Integrated 9/16" Autoclave Connection: Includes a specialized, high-integrity 9/16" Autoclave connection, designed for reliable, leak-free connections in extremely high-pressure auxiliary or instrumentation lines.
• Premium High-Strength Alloy: Manufactured from a select high-strength alloy, providing exceptional durability, resistance to wear, and the structural integrity required for prolonged service in harsh oilfield environments.
• Standard Service Capable: Designed for dependable performance when handling a wide range of standard oilfield fluids.
• Precision Machining: Expertly crafted to precise tolerances, ensuring optimal fit-up, ease of assembly, and reliable sealing across all 1502 and Autoclave connection points.
• Standard Compliant Connections: Both the 1502 hammer union ends and the 9/16" Autoclave connection conform to their respective industry standards, ensuring compatibility and reliable performance.

Specifications and Technical Details:

• Product Type: Cross Fitting with Autoclave Connection
• Size: 2 inch (Nominal)
• Pressure Rating: 15000 PSI (103.4 MPa) Working Pressure
• Connections:

  • Three (3) x 1502 Female Threaded
  • One (1) x 1502 Male Wing
  • One (1) x 9/16 inch Autoclave
• Service Class: Standard Service (STD)
• Material: High-strength alloy (Material Test Reports available upon request)
• 9/16" Autoclave Connection Details: The integrated 9/16" Autoclave connection is a precisely engineered, high-pressure, cone-and-thread style port on the fitting. This design provides superior sealing integrity and mechanical strength compared to conventional threaded connections like NPT, making it the preferred choice for critical instrumentation lines, sampling ports, or chemical injection points in extremely high-pressure environments up to the fitting's 15000 PSI rating where a more robust and reliable auxiliary connection is required.
• Compliance: Manufactured under strict quality control processes and designed to meet or exceed relevant industry standards for high-pressure oilfield equipment.
• End Connections: All 1502 and Autoclave connections are precision manufactured to conform to their respective industry standards, guaranteeing proper and secure mating with compatible components.

Application:

This 2" 1502 Cross (F x F x F x M) with 9/16" Autoclave Connection, 15000 PSI Standard Service, is ideally suited for high-pressure oilfield applications requiring a combination of versatile 1502 connectivity and a high-integrity auxiliary port. Key applications include:

• High-Pressure Injection Skids: Used in manifolds for chemical injection or other auxiliary fluids where precise volume and high-pressure integrity are critical, with an Autoclave connection for instrumentation.
• Wellhead Control Systems: Provides connection points for hydraulic or other control lines with a secure port for pressure verification.
• Sampling Points: Offers a reliable and safe point for collecting fluid samples from high-pressure lines.
• Critical Monitoring Points: Allows for the direct and secure connection of high-pressure transducers or gauges for accurate system monitoring.
• Any 15000 PSI System: Applicable wherever a 2" cross with this specific combination of 1502 ends and a highly reliable 9/16" Autoclave auxiliary connection is necessary for operational safety and performance.

Choose this specialized 2" 1502 Cross with 9/16" Autoclave Connection for unparalleled integrity and precise auxiliary access in your high-pressure oilfield operations.

Supplied by Blaze Sales and service

Call +1 405 666 5011 or email at seo@blazess.com
