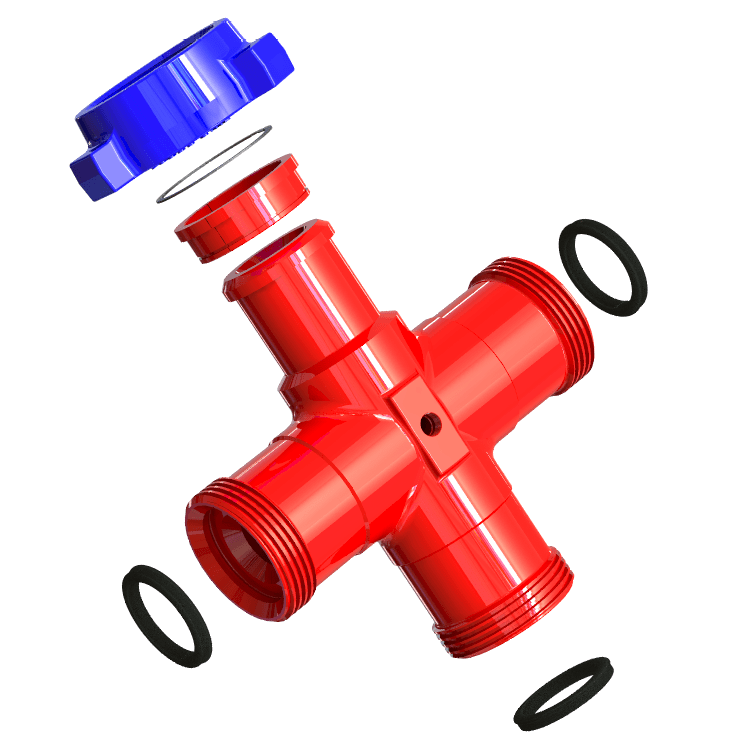

Cross, 2", 1502 F (thread) x F (thread) x F (thread) x M (wing) Standard, 15000 PSI 1/2" NPT Tap

Cross, 2", 1502  F (thread) x F (thread) x F (thread) x M (wing) Standard, 15000 PSI 1/2" NPT Tap

Navigating complex high-pressure flow paths in the oilfield demands fittings that offer both robust integrity and strategic access points. Our 2" 1502 Cross, featuring a highly versatile configuration of three Female Threaded (F) connections, one Male Wing (M) connection, and an integrated ½" NPT tap, is meticulously engineered to meet these precise requirements. Rated for an uncompromising 15000 PSI Standard Service, this cross fitting provides essential connectivity while offering a convenient port for monitoring or auxiliary functions.

Constructed from high-strength alloy, this fitting is precision-machined to the exacting standards of the 1502 union, ensuring secure, leak-free junctions capable of withstanding the extreme pressures encountered in drilling, completion, and well intervention. The addition of the ½" NPT tap enhances its functionality, allowing for finer control and monitoring within your high-pressure system without compromising the primary flow path's integrity.

2" 1502 Cross (3xF Thread, 1xM Wing) with integrated ½" NPT Tap, rated for 15000 PSI Standard Service. A high-strength alloy fitting providing versatile high-pressure connectivity and a convenient access point for monitoring or auxiliary lines in oilfield applications.

Features:

• Extreme Pressure Handling: Safely rated for a maximum working pressure of 15000 PSI, ensuring reliable performance in the most demanding high-pressure oilfield operations.
• Multi-Connection Design: Offers three 1502 Female Threaded ends and one 1502 Male Wing end for flexible integration into complex piping layouts.
• Integrated ½" NPT Tap: Provides a dedicated, precisely machined port for the insertion of pressure gauges, sampling valves, or other NPT-compatible instrumentation, allowing for granular control and system analysis.
• High-Strength Alloy Construction: Manufactured from premium high-strength alloy, selected for its superior durability, resistance to wear, and ability to withstand fatigue in harsh environments.
• Standard Service Capability: Engineered for dependable performance across a wide range of standard oilfield fluids and operating conditions.
• Precision Engineering: Machined to tight tolerances, ensuring optimal fit-up and reliable sealing across all connections, including the integrated NPT tap.
• 1502 Union Compatibility: Designed for seamless and secure mating with other components adhering to the industry-standard 1502 hammer union specification.

Specifications and Technical Details:

• Product Type: Cross Fitting with NPT Tap
• Size: 2 inch (Nominal)
• Pressure Rating: 15000 PSI (103.4 MPa) Working Pressure
• Connections:

  • Three (3) x 1502 Female Threaded
  • One (1) x 1502 Male Wing
  • One (1) x ½ inch NPT  Tap
• Service Class: Standard Service (STD)
• Material: High-strength alloy (Material Test Reports available upon request)
• NPT Tap Details: The integrated ½" NPT tap is precisely machined to provide a reliable, leak-tight interface for NPT-threaded components, rated to the fitting's full working pressure. This allows for direct pressure verification, fluid sampling, or the connection of auxiliary low-volume lines at a critical junction.
• Compliance: Manufactured under stringent quality control processes, adhering to relevant industry standards, including applicable API specifications for high-pressure equipment.
• End Connections: All 1502 and NPT connections conform to their respective industry standards, ensuring interchangeability and proper sealing when used with compatible components.

Application:

The 2" 1502 Cross (F x F x F x M) with ½" NPT Tap, 15000 PSI Standard Service, is an invaluable component in high-pressure oilfield systems where versatile connectivity and localized access are required. Typical applications include:

• High-Pressure Manifolds: Creating branching points with integrated pressure monitoring or injection ports.
• Well Stimulation Circuits: Providing connection points for multiple lines with the ability to gauge pressure or inject chemicals.
• Well Testing Spreads: Offering flexible flow routing and instrumentation points for accurate data acquisition.
• Blowout Preventer (BOP) Control Lines: Enabling the connection of gauges or auxiliary hydraulic lines.
• Any 15000 PSI System: Where a 2" cross with this specific combination of 1502 ends and an NPT tap is needed for operational flexibility and monitoring.

Enhance the functionality and monitoring capabilities of your high-pressure oilfield infrastructure with this precision-engineered 2" 1502 Cross.

Supplied by Blaze Sales and service

Call +1 405 666 5011 or email at seo@blazess.com.
