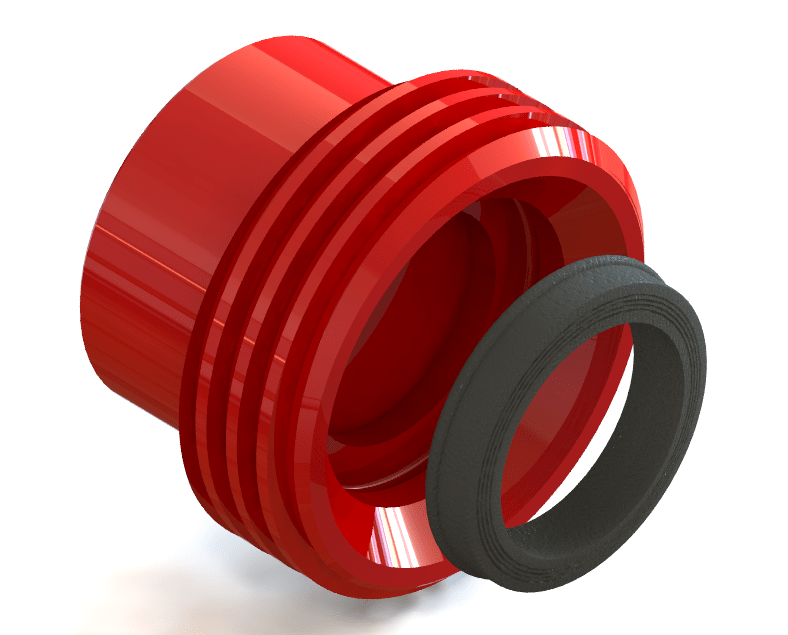

Blanking Cap, 4” 1502 F, 1/2” NPT Tap, 15000 psi, STD Service

Blanking Cap, 4” 1502 F, 1/2” NPT Tap, 15000 psi, STD Service

The Blanking Cap, 4" FIG 1502 Female, with 1/2" NPT Tap, 15,000 PSI, Standard Service, is designed to provide secure isolation and sealing for high-pressure oilfield systems. Manufactured from forged, high-strength alloy steel, it is built to withstand the rigorous demands of standard service environments while maintaining performance at working pressures up to 15,000 PSI. The precision female FIG 1502 threaded connection ensures a reliable seal, while the integrated 1/2" NPT tapped port allows for pressure monitoring, venting, or auxiliary connections without disturbing system isolation.

Features:

• Forged High-Strength Construction: Delivers outstanding strength, durability, and fatigue resistance under extreme pressure.

• High Pressure Rating: Capable of withstanding up to 15,000 PSI working pressure for critical operations.

• 1/2" NPT Tapped Port: Facilitates easy connection of pressure gauges, bleed-off valves, or monitoring instruments.

• Precision Female Threaded Connection: FIG 1502 threading offers a leak-proof, secure fit in high-pressure systems.

• Corrosion-Resistant Coating: Extends service life by protecting against harsh operating conditions and environmental exposure.

• API and Industry Compliance: Manufactured according to API standards for pressure control equipment.

• Clear Identification: Marked clearly with size, pressure rating, and service type for quick and safe recognition in the field.

Specifications and Technical Details:

• Size: 4 inches

• Figure Number: 1502

• Connection Type: Female Threaded (F) with 1/2" NPT Tapped Port

• Material: Forged high-strength alloy steel

• Pressure Rating: 15,000 PSI (working pressure)

• Surface Treatment: Corrosion-resistant coating

• Service Type: Standard Service

• Standards: API-compliant manufacturing

• Temperature Range: Designed for various oilfield standard operating conditions

• Markings: Clearly labeled for size, service type, and pressure rating

Application:
The 4" FIG 1502 Female Blanking Cap with 1/2" NPT Tap is ideal for isolating pipelines, valves, and high-pressure systems during maintenance, pressure testing, or temporary shutdowns in standard oilfield applications. The tapped port allows operators to monitor or relieve pressure safely without removing the cap, improving operational safety and efficiency.
