Blanking Cap, 3” 1502 M, 1/2” NPT Tap, 10000, Sour Service

Blanking Cap, 3” 1502 M, 1/2” NPT Tap, 10000, Sour Service

$315.00
$315.00
Sale Sold out
Shipping calculated at checkout.

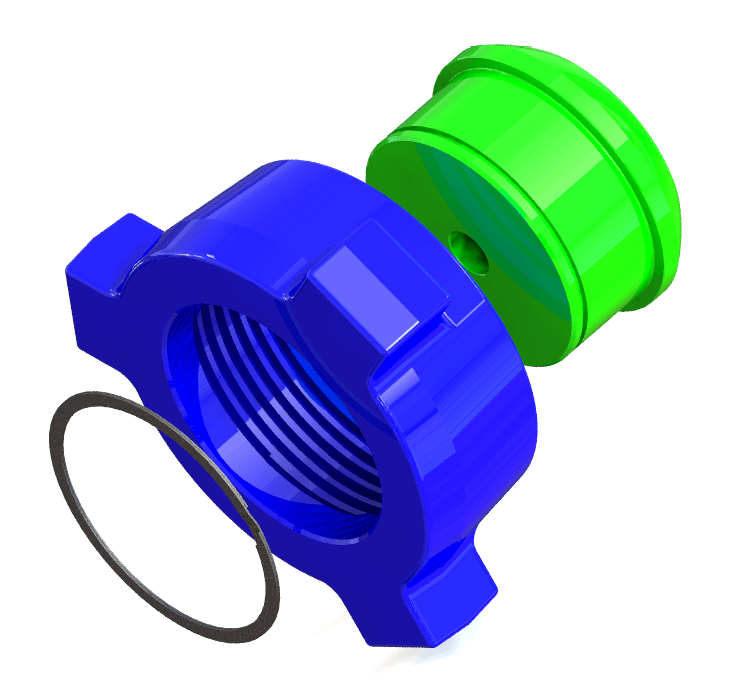

Blanking Cap, 3” 1502 M, 1/2” NPT Tap, 10000, Sour Service

Blaze Sales and Service offers the Blanking Cap, 3” FIG 1502 male (1502 M) with ½″ NPT tap, rated 10,000 psi for sour service. This precision-machined cap provides a secure seal on unused ports in H₂S-containing environments, while the integrated NPT tap allows for pressure monitoring, sampling, or venting without removing the cap. Constructed from sour-service alloy steel and finished for corrosion resistance, it delivers dependable, leak-free performance in demanding oilfield operations.

Features:

  • 3” nominal bore FIG 1502 male blanking cap with integrated ½″ NPT tapped port

  • Sour-service alloy steel construction, NACE MR0175 compliant for H₂S resistance

  • Rated to 10,000 psi in sour environments

  • Smooth sealing face for full-contact flange sealing

  • External knurling for positive grip during installation and removal

  • ½″ NPT tapped port for instrumentation, sampling, or controlled venting

  • Wide temperature capability: –40 °F to +250 °F

  • Manufactured to API 6A and ISO 9001 quality standards

Specifications & Technical Details:

  • Part Type: Blanking Cap, 3” FIG 1502 male (1502 M)

  • Service Class: Sour Service (H₂S)

  • Pressure Rating: 10,000 psi

  • Material: High-strength alloy steel, NACE MR0175 compliant

  • Temperature Range: –40 °F to +250 °F

  • Face Type: Smooth sealing face per FIG 1502

  • Connection: Male FIG 1502 interface with ½″ NPT tapped port

  • Tap Rating: Full-bore ½″ NPT, rated for 10,000 psi

  • Dimensions: 3” nominal bore; overall length and diameter per FIG 1502 standard

  • Certifications: API 6A, ISO 9001, NACE MR0175

Application:
Ideal for sealing and monitoring unused ports in high-pressure sour-service oilfield systems, including:

  • Wellhead side outlets and chokes

  • Blowout preventer (BOP) control lines

  • Hydraulic and chemical injection manifolds

  • Drilling rig pressure modules

  • Offshore and onshore production facilities requiring H₂S compatibility

Supplied by Blaze Sales and Service. For inquiries or to place an order, call +1 405 666 5011 or email seo@blazess.com.
