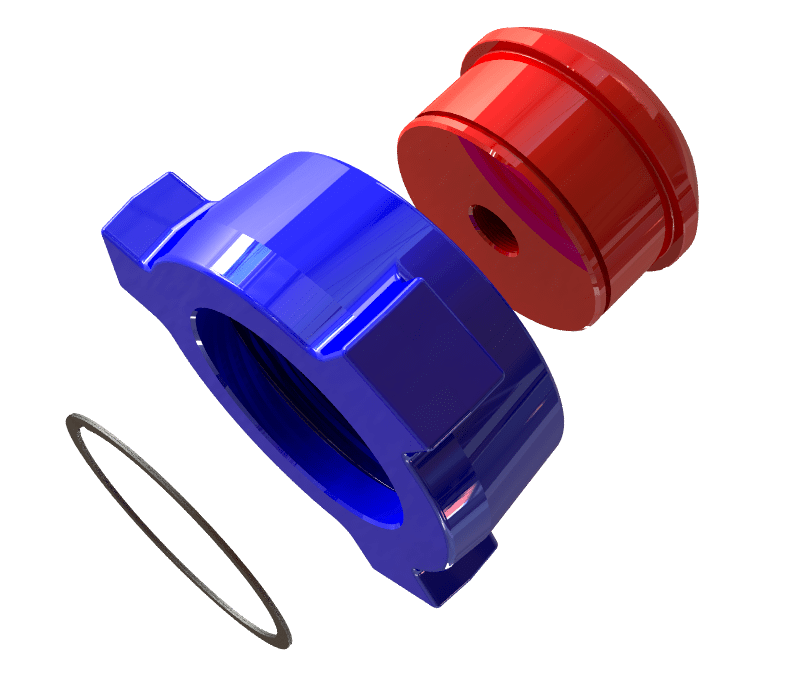

4" FIG 1502 MALE BLIND (WING) NUT WITH 9/16 AUTOCLAVE

4" FIG 1502 MALE BLIND & NUT WITH 9/16 AUTOCLAVE

The 4" FIG 1502 Male Blind & Nut with 9/16" Autoclave connection is a heavy-duty pressure control device engineered for sealing and isolating high-pressure systems in the oilfield industry. Manufactured from top-grade forged alloy steel, this male blind ensures a secure and leak-proof seal, critical for operations involving extreme pressures. The 4" size allows for sealing larger bore equipment while maintaining the same trusted reliability expected from FIG 1502 components. With an integrated 9/16" Autoclave Nut, it ensures precision connection and ease of installation, offering maximum safety and efficiency in demanding field conditions.

Features:

• Robust Design: Forged from high-strength alloy steel to deliver long-lasting performance under extreme conditions.

• High Pressure Rating: Suitable for operations up to 15,000 PSI working pressure.

• Precision Connection: Fitted with a 9/16" Autoclave Nut for a tight and secure seal.

• Efficient Handling: Wing configuration allows easy manual tightening and removal without special tools.

• Corrosion Protection: Special surface treatment for extended durability against harsh oilfield environments.

• Industry Compliance: Manufactured to meet or exceed API and pressure control standards.

• Larger Bore Capacity: Ideal for sealing larger diameter piping systems safely and effectively.

Specifications and Technical Details:

• Size: 4 inches

• Figure Number: 1502

• Connection Type: Male Wing

• Nut Size: 9/16" Autoclave

• Material: Forged high-strength alloy steel

• Pressure Rating: 15,000 PSI (working pressure)

• Surface Finish: Corrosion-resistant coated

• Manufacturing Standards: API and oilfield equipment compliance

• Temperature Rating: Built to withstand extreme operating temperatures

• Color Coding: Marked for quick and easy identification in the field

Application:
The 4" FIG 1502 Male Blind & Nut is used across high-pressure oilfield operations including hydraulic fracturing, flowback services, production well testing, and pressure control assemblies. It provides critical isolation for safety during maintenance, system shutdowns, and testing, particularly where larger flow lines or equipment need secure sealing. Ideal for both offshore and onshore applications where size, strength, and sealing performance are non-negotiable.
