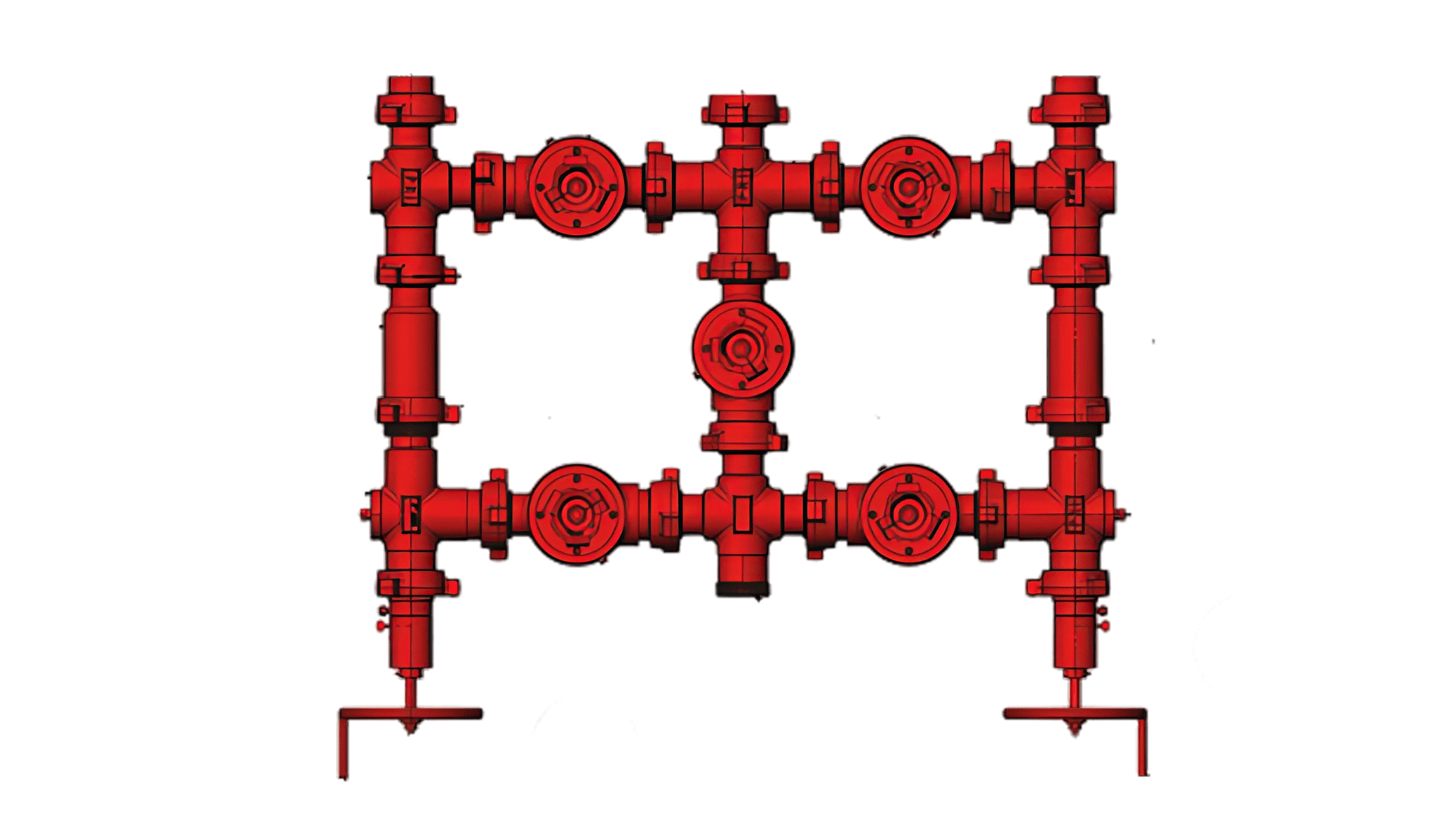

3" FIG. 1502 - 5 VALVES, 2 CHOKE MANIFOLD

3" FIG. 1502 - 5 VALVES, 2 CHOKE MANIFOLD

Navigate the most demanding oilfield environments with confidence using the 3" FIG. 1502 - 5 Valves, 2 Choke Manifold, supplied by Blaze Sales and Service. Engineered for unparalleled safety and precise control in high-pressure applications, this robust manifold system is the cornerstone of efficient well testing, flowback, and production operations. Its heavy-duty construction and advanced valve configuration ensure reliable performance and a significant reduction in operational downtime, safeguarding your most critical assets.

CONSTRUCTION:

• 3" Fig. 1502 Choke Manifold Assembly.
• Consists of two numbers of choke and five numbers of plug valve.
• Provision for measurement of pressure and temperature.
• Available with skid.
• Approximate weight is 828 kg.

Features:

• Robust FIG. 1502 Connections: Designed to withstand extreme pressures up to 15,000 PSI CWP (Cold Working Pressure), ensuring secure and leak-free connections critical for high-pressure oilfield operations.


• Five High-Performance Valves: Equipped with five strategically placed valves, offering comprehensive control over fluid pathways, isolation, and diversion, enhancing operational flexibility and safety.
• Dual Choke Configuration: Features two integrated chokes (positive or adjustable options available), enabling precise control of flow rates, pressure reduction, and well optimization, crucial for managing diverse reservoir conditions.


• Heavy-Duty Forged Construction: Manufactured from premium, high-strength alloy steel, the manifold body is forged for superior integrity and durability, resisting erosion, corrosion, and fatigue in aggressive environments.
• Optimized Flow Dynamics: Engineered internally to minimize turbulence and pressure drops, promoting efficient fluid handling and extending the lifespan of the manifold and associated equipment.
• Enhanced Safety Protocols: Designed with multiple layers of safety features, including redundant sealing mechanisms and robust locking systems on valves and chokes, to prevent accidental operations and ensure operator protection.
• Ease of Maintenance: Modular design facilitates straightforward inspection, repair, and replacement of components, reducing maintenance time and operational costs.
• Sour Service Capability (Optional): Available with configurations compliant with NACE MR0175/ISO 15156 for resistance to sulfide stress cracking, suitable for sour gas applications.



Specifications and Technical Details:

• Nominal Size: 3 inches
• Pressure Rating: FIG. 1502 (15,000 PSI CWP - Cold Working Pressure)
• Number of Valves: 5
• Number of Chokes: 2 (configurable as positive, adjustable, or a combination)
• End Connections: FIG. 1502 hammer unions
• Material: High-strength alloy steel, typically AISI 4130 or equivalent, heat-treated for optimal mechanical properties. (Specific material grades available upon request).
• Operating Temperature Range: Typically -20°F to +250°F (-29°C to +121°C), extended ranges available for specific applications.
• Service Compatibility: Standard service for oil, gas, and drilling fluids; Sour Service (NACE MR0175/ISO 15156) compliant options available.


• Hydrostatic Test Pressure: 22,500 PSI (1.5 times CWP)
• Working Medium: Oil, natural gas, drilling fluid, water, and other well fluids.
• Manufacturing Standards: API 6A, API Spec 16C, and other relevant industry standards (e.g., ASME, ISO) as applicable.

Application:

The 3" FIG. 1502 - 5 Valves, 2 Choke Manifold is an indispensable component in a wide array of high-pressure oilfield operations, including but not limited to:

• Well Testing and Clean-up: Precisely managing flow from newly drilled or stimulated wells to evaluate reservoir performance and remove completion fluids.
• Flowback Operations: Controlling and diverting flow during the initial phase of well production after hydraulic fracturing or stimulation.
• Production Manifolds: Serving as a critical interface for directing and regulating the flow of hydrocarbons from multiple wells into processing facilities.
• Kill and Choke Manifolds: Integral to well control operations, providing a means to circulate out kicks and manage wellbore pressure.


• Frac Stack Components: Utilized as a vital part of the surface equipment during hydraulic fracturing to manage fluid flow and pressure.
• High-Pressure Diversion: Facilitating safe and efficient diversion of high-pressure fluids during various well interventions and operations.

For reliable, high-performance oilfield equipment, trust the expertise of Blaze Sales and Service.

Contact: Call +1 405 666 5011

E-mail at seo@blazess.com
