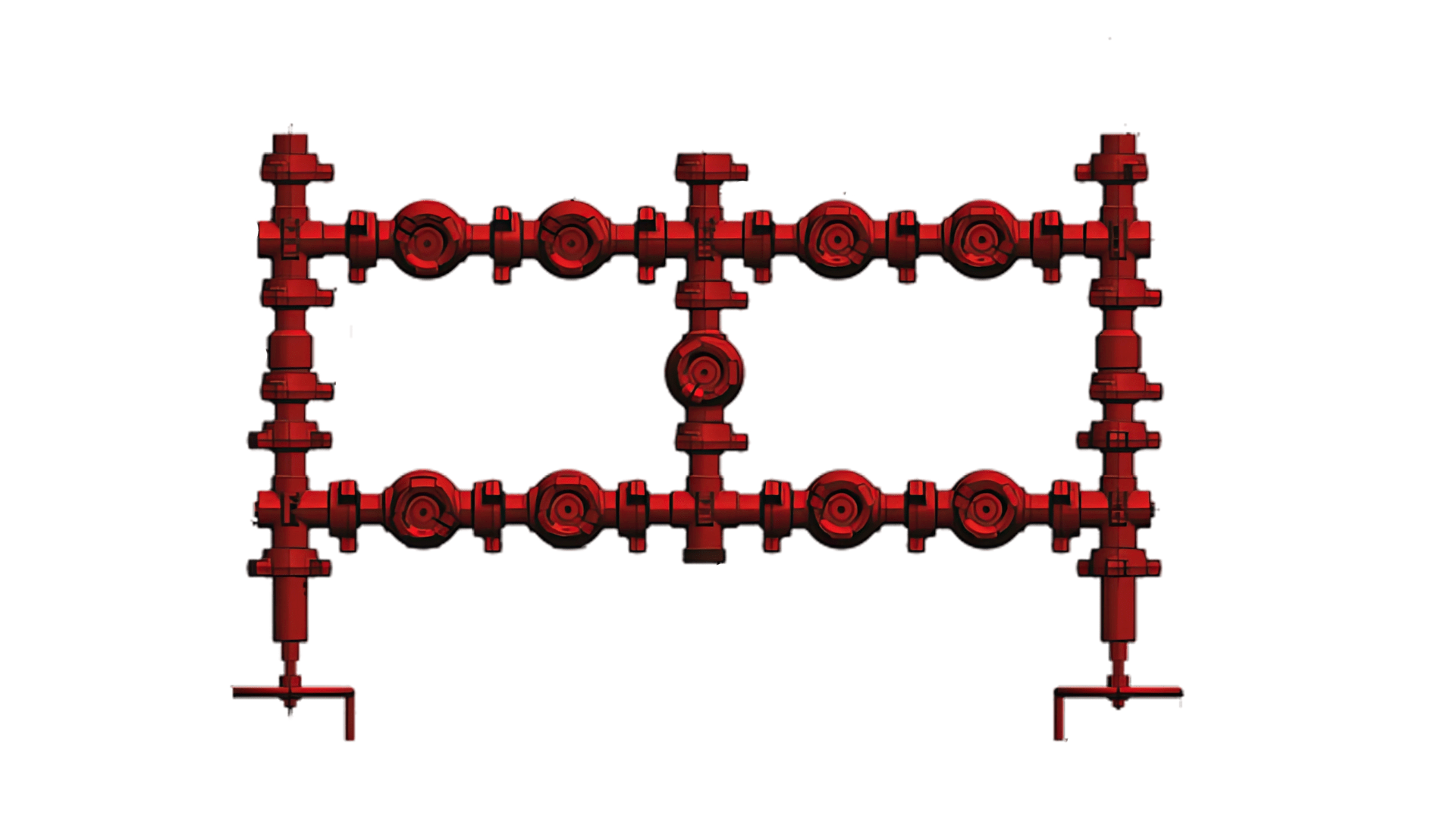

2" FIG. 1502 - 9 Valves, 2 Choke Manifold

2" FIG. 1502 - 9 Valves, 2 Choke Manifold

In the demanding world of oil and gas exploration and production, control over wellbore pressure is not merely a preference, but an absolute necessity. The 2" FIG. 1502 - 9 Valves, 2 Choke Manifold, offered by Blaze Sales and Service, stands as a testament to uncompromising engineering and reliability. This robust and meticulously designed system is your frontline defense and precision tool for managing the formidable forces encountered in high-pressure oilfield environments. Built to the stringent FIG. 1502 standard, it ensures a secure, leak-proof connection capable of withstanding extreme pressures, making it indispensable for drilling, well testing, and workover operations. With its array of nine strategically placed valves and a dual-choke configuration, this manifold provides unparalleled flexibility and safety, allowing operators to precisely control flow rates and pressures, thereby safeguarding personnel, equipment, and the environment. Invest in the integrity of your operations with equipment engineered for resilience and supreme performance.

CONSTRUCTION:

* 2"Fig. 1502 choke manifold Assembly.
* Consists of two numbers of choke and nine numbers of plug valve.
* Provision for measurement of pressure and temperature.
* Available with skid.
* Approximate weight is 604.5 kg.

Features:

• FIG. 1502 Compliance: Designed and manufactured to meet the rigorous FIG. 1502 pressure rating, ensuring high-pressure integrity and reliability in the most challenging oilfield conditions.
• Nine Valve Configuration: Equipped with nine high-quality valves, offering extensive control over flow paths, enabling bypass, isolation, and intricate pressure management.
• Dual Choke System: Features two choke lines (one main, one bypass/kill line), providing redundant pressure control, allowing for continuous operation and enhanced safety during choke changes or maintenance.


• Robust Construction: Constructed from high-grade alloy steel, engineered to resist wear, corrosion, and erosion inherent in abrasive and corrosive oilfield fluids.
• Enhanced Safety: Provides critical control over wellbore kicks and pressure surges, protecting drilling rigs and personnel from potential blowouts.
• Optimized Flow Control: Enables precise adjustment of flow rates and wellbore pressures, crucial for well cleanup, testing, and production optimization.


• Field-Proven Design: Built for durability and ease of maintenance, minimizing downtime and maximizing operational efficiency in remote and harsh environments.

Specifications and Technical Details:

• Nominal Size: 2 inches
• End Connections: FIG. 1502 Hammer Union Ends (male and female) for secure and rapid connections.
• Pressure Rating: 15,000 PSI Working Pressure (WP) / 22,500 PSI Test Pressure (TP)
• Number of Valves: 9 (typically includes gate valves for isolation, bypass, and manifold line control)
• Choke Configuration: 2 Chokes (Adjustable or Fixed, depending on customer specification - typically includes one main choke and one bypass/kill line choke)
• Material: High-strength alloy steel, heat-treated for enhanced toughness and durability (e.g., AISI 4130, 4140, or equivalent).
• Service: Standard (Sweet Gas/Oil)
• Operating Temperature Range: Suitable for a wide range of oilfield temperatures.
• Testing: Hydrostatically tested and drift-tested to API 6A/16C standards.

Application:

The 2" FIG. 1502 - 9 Valves, 2 Choke Manifold is an indispensable component in a variety of high-pressure oilfield operations, including:

• Drilling Operations: Critical for controlling well kicks, circulating drilling mud, and maintaining back pressure on the annulus during drilling.


• Well Testing: Essential for regulating flow and pressure during well cleanup, flowback, and production testing to gather vital reservoir data.
• Workover Operations: Used to manage wellbore pressure during well intervention, stimulation, and repair procedures.
• Fracturing and Stimulation: Can be incorporated into fracturing setups to manage returns and maintain wellbore integrity.
• Kill Operations: Provides a reliable system for pumping kill fluid into a well to control kicks and bring the well under control.

Supplied by Blaze Sales and Service.

For inquiries and to learn more about how our 2" FIG. 1502 - 9 Valves, 2 Choke Manifold can enhance your operations, please call us at +1 405 666 5011

Email : seo@blazess.com.
