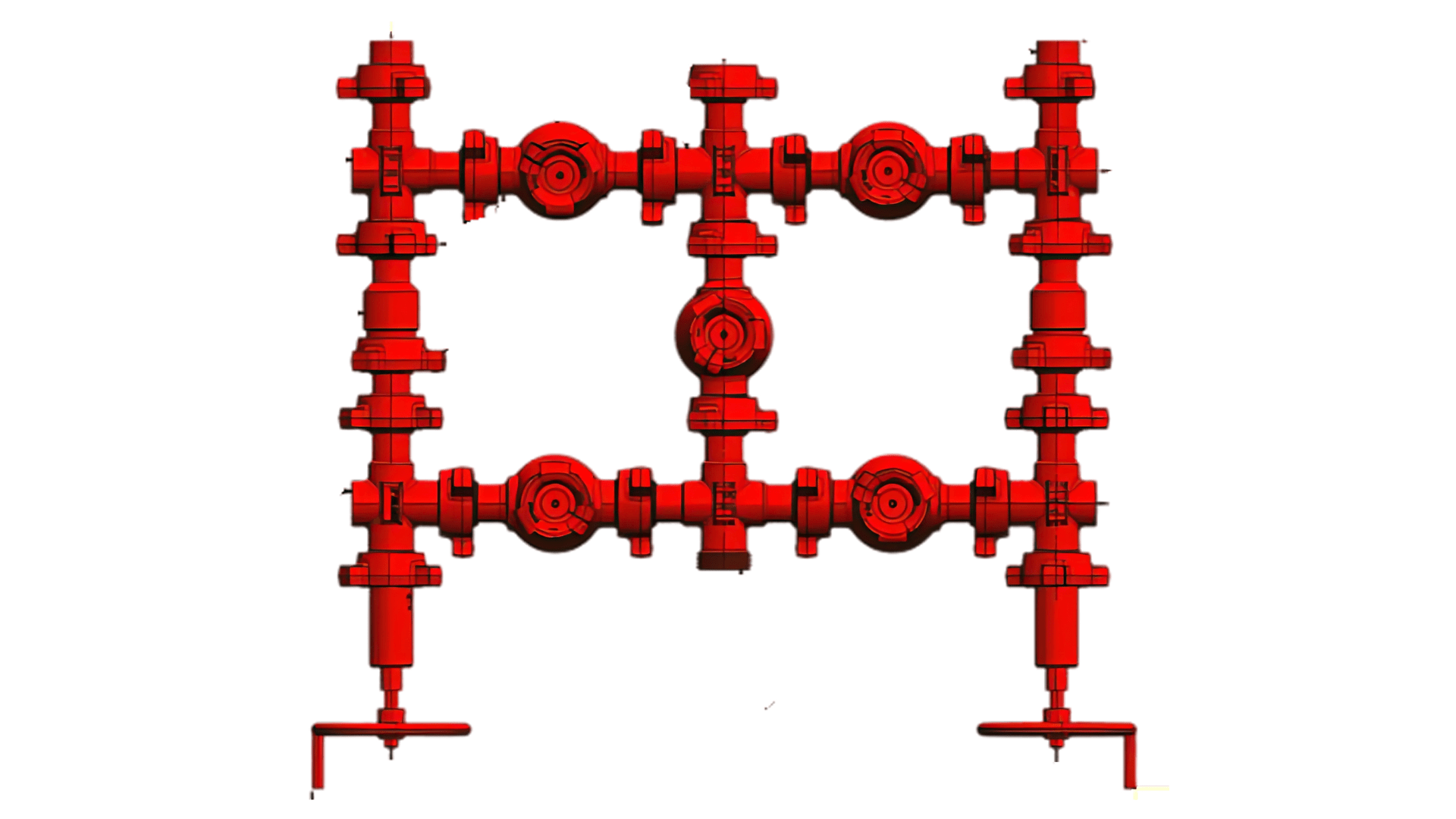

2" FIG. 1502 - 5 Valves, 2 Choke Manifold
2" FIG. 1502 - 5 Valves, 2 Choke Manifold
Couldn't load pickup availability
2" FIG. 1502 - 5 Valves, 2 Choke Manifold
In the demanding world of high-pressure oilfield operations, precise pressure management is not just an advantage—it's a critical safety imperative. The 2" FIG. 1502 - 5 Valves, 2 Choke Manifold stands as a testament to uncompromising engineering and reliability, specifically designed to withstand and control the most extreme wellbore pressures. This essential piece of equipment is the linchpin for safe and efficient operations across various phases of oil and gas exploration and production.
Built with robust forged steel components and featuring industry-standard 2-inch Figure 1502 hammer union connections, this manifold is rated for a formidable 15,000 PSI Cold Working Pressure (CWP). It integrates five high-performance valves and two precisely calibrated chokes, providing operators with unparalleled flexibility and redundancy for flow control. Whether you are managing kicks during drilling, conducting well clean-up, performing well testing, or optimizing flow during fracturing and production, this manifold offers the granular control necessary to protect personnel, preserve equipment, and maximize operational uptime.
Every component is meticulously manufactured to meet and exceed stringent industry standards, ensuring durability and consistent performance in the face of abrasive fluids, corrosive environments, and extreme temperatures. By enabling precise adjustments to flow rates and back pressure, the 2" FIG. 1502 Choke Manifold empowers operators to maintain well integrity, prevent blowouts, and efficiently manage the complexities of reservoir dynamics. Invest in a solution that delivers peace of mind and operational excellence.
CONSTRUCTION:
• 2"Fig. 1502 choke manifold Assembly.
• Consists of two numbers of choke and nine numbers of plug valve.
• Provision for measurement of pressure and temperature.
• Available with skid.
• Approximate weight is 604.5 kg.
| ITEM NO. | DESCRIPTION | QUANTITY |
|---|---|---|
| 1 | ADJUSTABLE CHOKE 2" FIG. 1502 | 2 |
| 2 | BLAST JOINT 2" FIG. 1502 | 2 |
| 3 | TEE 2" MXMXF | 2 |
| 4 | PLUG VALVE 2" FIG. 1502 | 9 |
| 5 | CROSS 2" MXFXFXF | 1 |
| 6 | BLIND FEMALE 2" FIG. 1502 | 2 |
| 7 | CROSS 2" MXMXMXF | 1 |
Key Features:
- High-Pressure Rating: Engineered for severe service, featuring a 15,000 PSI (103.4 MPa) Cold Working Pressure (CWP).
- Robust Construction: Manufactured from high-strength forged alloy steel for maximum durability and resistance to wear and corrosion.
- Figure 1502 Connections: Utilizes universally recognized 2-inch Figure 1502 hammer union ends for quick, secure, and reliable connections in high-pressure systems.
- Comprehensive Valve Configuration: Equipped with 5 strategically placed valves (e.g., inlet, outlet, bypass, isolation) to provide maximum operational flexibility, redundancy, and emergency shut-off capabilities.
- Dual Choke System: Features 2 chokes (typically one adjustable and one fixed/positive choke) for precise control over flow rate and back pressure, enabling efficient well kill, testing, and production optimization.
- Abrasive & Corrosive Service Compatibility: Designed to handle challenging well fluids, ensuring longevity and consistent performance.
- Safety Enhancements: Built to strict API specifications, providing a critical barrier for well control and pressure management, enhancing site safety.
- Ease of Maintenance: Designed for field serviceability, allowing for efficient maintenance and parts replacement.
Specifications & Technical Details:
| Specification | Detail |
|---|---|
| Nominal Pipe Size | 2 inches |
| End Connections | 2" FIG. 1502 Hammer Union Ends (API 6A compatible) |
| Cold Working Pressure (CWP) | 15,000 PSI (103.4 MPa) |
| Test Pressure | 22,500 PSI (155.1 MPa) Hydrostatic Test |
| Number of Valves | 5 (Configuration may vary, commonly includes inlet, outlet, bypass, and kill line valves) |
| Number of Chokes | 2 (Typically one Adjustable Choke and one Positive/Fixed Choke) |
| Adjustable Choke Type | Needle and Seat type for fine-tuned flow control |
| Positive/Fixed Choke Type | Interchangeable bean for consistent flow rates |
| Material | Forged Alloy Steel (e.g., AISI 4130, 4140, or equivalent) |
| Sealing Material | HNBR, FKM (Viton®), or specified for application temperature and fluid compatibility |
| Temperature Rating | -20°F to 250°F (-29°C to 121°C) (Standard Service, P/PR temperature class) |
| Service Class | Standard Service (for general wellbore fluids) or H2S Service (for sour gas environments) as specified |
| Applicable Standards | Designed and manufactured in accordance with API 6A, NACE MR0175 (for sour service variants) |
Applications:
The 2" FIG. 1502 - 5 Valves, 2 Choke Manifold is an indispensable component across various critical phases of oilfield operations, including:
- Drilling Operations: Essential for well control during kick management, enabling safe circulation and pressure equalization.
- Well Testing: Crucial for regulating flow and pressure during well clean-up, flowback, and production testing to gather accurate reservoir data.
- Frac Flowback: Manages the high-pressure flow of proppant and fluids during the post-fracturing flowback phase.
- Cementing Operations: Can be utilized for controlled pressure release and monitoring.
- Coiled Tubing Operations: Provides pressure control for well interventions.
- Snubbing/Workover Operations: Critical for maintaining well control during live well interventions.
- Production & Completions: Used for fine-tuning production rates and managing wellhead pressure.
Supplied by Blaze Sales and Service, your trusted partner for high-pressure oilfield equipment. For inquiries, please call +1 405 666 5011 or email us at seo@blazess.com.
